HOW TO CHOOSE PRESS BRAKE

2017/7/31      view:

HOW TO CHOOSE PRESS BRAKE:

MACHINE MODEL EXPLANATIONS:

HPB-100T/3200 OR WC67Y-100T/3200

HPB OR WC67Y MEANS: STANDARD HYDRAULIC TYPE PRESS BRAKE

100T MEANS:THE MAX.BENDING PRESSURE IS 100TON

3200 MEANS:THE MACHINE LENGTH IS 3200MM!

FOR EXAMPLE,WE HAVE A MILD STEEL PLATE WITH 6MM THICKNESS WITH 3200MM LENGTH WHICH WE WANT TO BEND,HOW TO CHOOSE THE PRESS BRAKE?

1.FIRST OF ALL, MAKE SURE WHAT IS MAX BENDING WIDTH,RIGHT NOW,THE MAX.BENDING WIDTH IS 3200MM,WE HAVE TO CHOOSE MACHINE WITH 3200MM LENGTH AT LEAST!

2.WE HAVE TO MAKE SURE WHAT IS MAX.BENDING THCIKNESS TO MAKE SURE WHAT IS BENDING PRESSURE WE REQUIRED

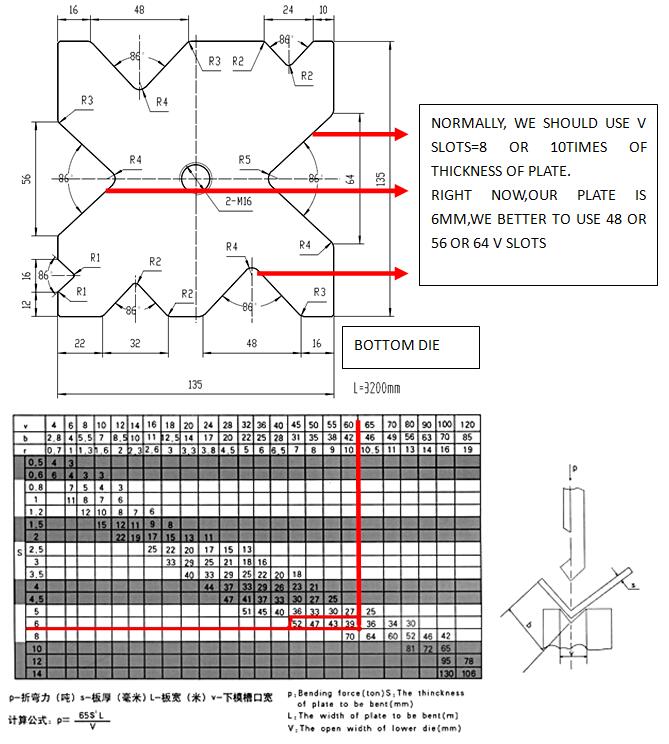

A):.ACCORDING TO MAX.BENDING WITDH,WE CAN SEE WHAT IS V SLOTS WE SHOULD USE.

B):SO IF WE CHOOSE V SLOT=60,WE CAN SEE EACH METER WE NEED 39TON BENDING PRESSURE.(REFER TO ABOVE BENDING PRESSURE CHART).

C):OUR PLATE IS 3200MM LENGTH,WE CAN SEE TOTAL NEED PRESSURE=39TX3.2=124.2TON.

SO WE SHOULD CHOOSE MODEL AT LEAST HPB OR WC67Y-125/3200!
