Guillotine shears-Shearing machine

Introduction

QC11Y-HTG SERIES-HYDRAULIC GUILLOTINE SHEARS/GUILLOTINE SHEARING MACHINE:THIS MACHINE IS USED TO CUT METAL SHEET PLATE.

1.DESCRIPTIONS:

1.Hydraulic guillotine shears with cutting angle adjustable,it is more better choice for cutting big thickness more than 12mm metal sheet.

2.The upper blades are driven by hydraulic system,the upper blades move up and down vertically to finish the metal sheet cutting.

3.The cutting blades use 6crw2si material with four cutting edges,it has long serive life.

4.The movement of upper blades adopts 3 supporting principle,when do the cutting,it will eliminate gap between upper and bottom blades.

5.Standard E21 controller which can control the back gauge automatically with good accuracy.

6.Frequency driver is used to do fast and accuracy positioning of back gauge.

7.BOSCH valve and SUNNY hydraulic pump gurantee long serive life and low noice during machine cutting.

8.Safety guards are used for protection the safety of operator and emergency stop buttons avaible on footswitch and control panel.

9.Whole machine can be customerized or OEM according your requests.

2.MAIN CONFIGURES:

1.Controller:E21                           2.Electric parts:Schneider or Simens     3.Frequency driver:Schliner(Taiwan)

4.Hydraulic valve:BOSCH German    5.Hydraulic pump:SUNNY USA             6.Oil seal:NOK Japan

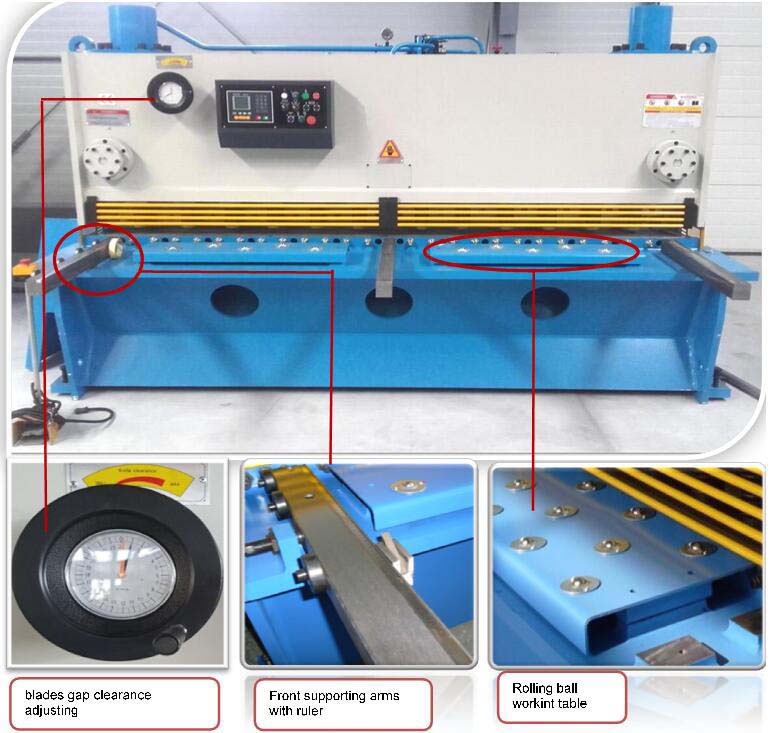

3.REFERENCE PICTURES:




4.PARAMETERS:


5.REFERENCE VIDEOS:
