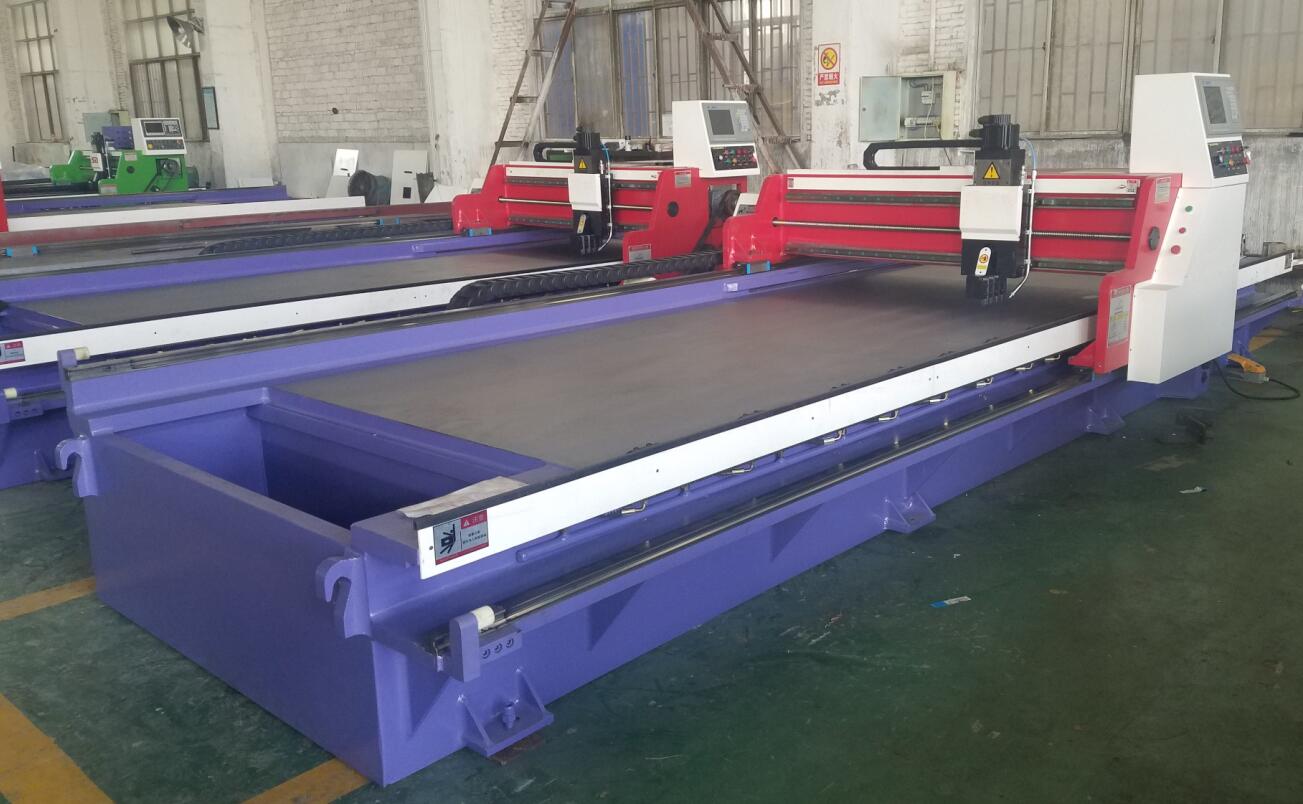

CNC V GROOVING MACHINE/CNC V CUTTING MACHINE-REGK SERIES TABLE TYPE: THIS V GROOVING MACHINE IS USED TO MAKE SLOTS ON METAL SHEET PLATES.
DESCRIPTION:
THIS MACHINE IS USED TO OPEN V SLOTS ON METAL SHEET(MILD STEEL PLATE OR STAINLESS STEEL PLATES ETC.).AFTER MAKING V SLOTS ON METAL SHEET,THEN YOU DO BENDING TO GET SHARP BENDING ANGLE AND GOOD LOOKING OF BENDING.
PARAMETERS:
|
ITEM |
CNC V GROOVING MACHINE:REGK SERIES |
||
|
MAX. WORKABLE WIDTH OF PLATE |
1250mm |
1250mm |
1250mm |
|
MAX. WORKABLE LENGTH OF PLATE |
4000mm |
5000mm |
6000mm |
|
MAX. WORKABLE THICKNESS OF PLATE |
0.40-4.00mm |
0.40-4.00mm |
0.40-4.00mm |
|
MIN.GAP BETWEEN SLOTS |
6-8mm |
6-8mm |
8mm |
|
X-AXIS WORKING SPEED |
70m/min |
70m/min |
70m/min |
|
X-AXIS RETURNING SPEED |
80m/min |
85m/min |
85m/min |
|
Y-AXIS MOVING SPEED |
20m/min |
20m/min |
20m/min |
|
Y.Z-AXIS REPEAT ACCURACY |
±0.01mm |
±0.01mm |
±0.01mm |
|
POWER OF X AXIS MOTOR |
5.5KW |
5.5KW |
5.5KW |
|
POWER OF Y.Z AXIS MOTOR |
1KW |
1KW |
1KW |
|
OVERALL SIZES �LxWxH� |
6150x2350x1560mm |
7150x2350x1560mm |
810x2350x1560mm |
|
MACHINE WEIGHT |
8.5T |
9T |
11T |
PARTS LISTS
|
NO. |
PARTS |
BRAND |
|
1 |
CNC CONTROLLER |
TAIWAN HINSTUN |
|
2 |
PNEUMATIC CONTROL |
TAIWAN |
|
3 |
SERVO MOTOR |
TAIWAN,DELTA |
|
4 |
LIMIT SWITCH |
JAPAN,OMRON |
|
5 |
MAIN MOTOR |
TAIWAN,DELTA |
|
6 |
ELECTRIC PARTS |
FRANCE,SCHNEIDER |
|
7 |
KNIFE |
SOUTH KOREA |
|
8 |
LINEAR GUIDER AND BALL SCREW |
TAIWAN,HINWS |
|
9 |
CABLE |
GERMAN |
|
10 |
LUBRICATING SYSTEM |
BERCHI |
