CNC V GROOVING MACHINE/V GROOVING MACHINE OR V CUTTING MACHINE-VKB SERIES:IT IS USED TO CUT V SLOTS ON METAL SHEET PLATES.
1.Description of cnc V grooving machine or CNC v cutting machine:

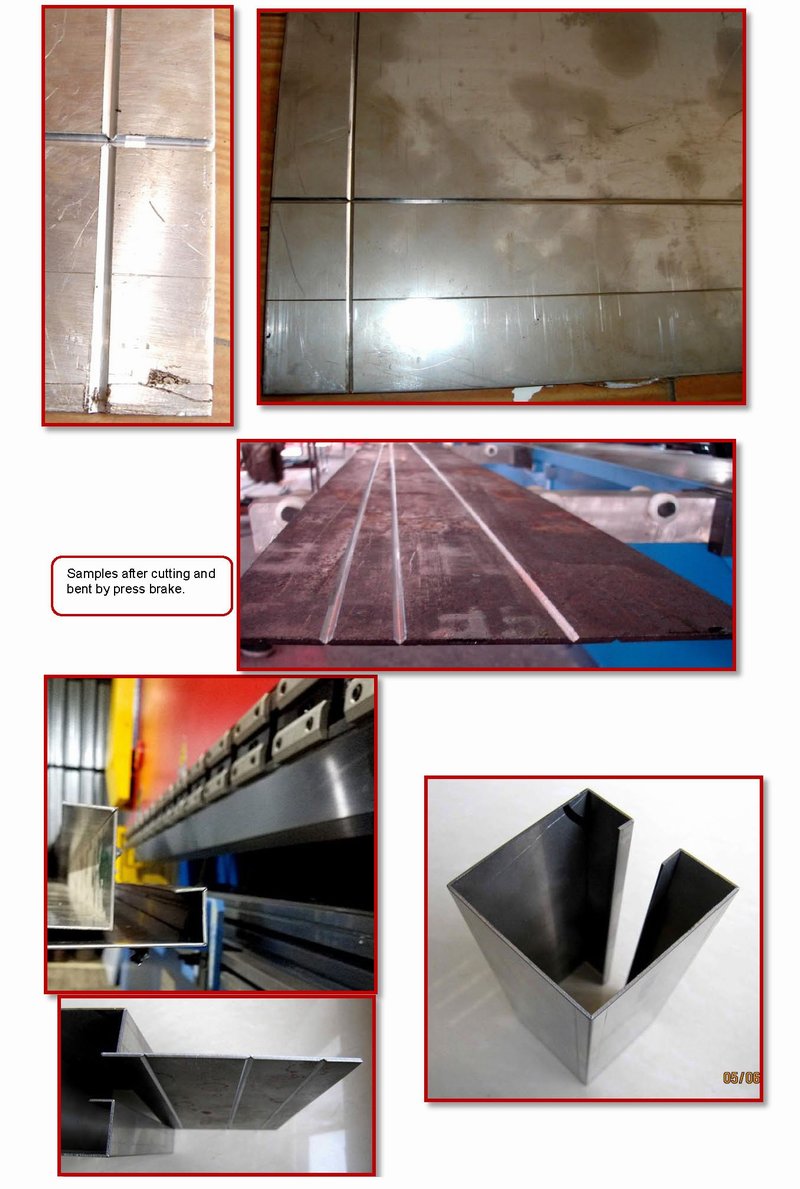

This machine is used to make V cutting or slots on metal sheet like mild steel,stainles steel and other metal sheet plate.After V grooving,if we do bending of this metal sheet,the bending angle will b sharp and small bending radius.It will show good looking.Right now the machine is widely used in Elevator,decoration jobs etc.

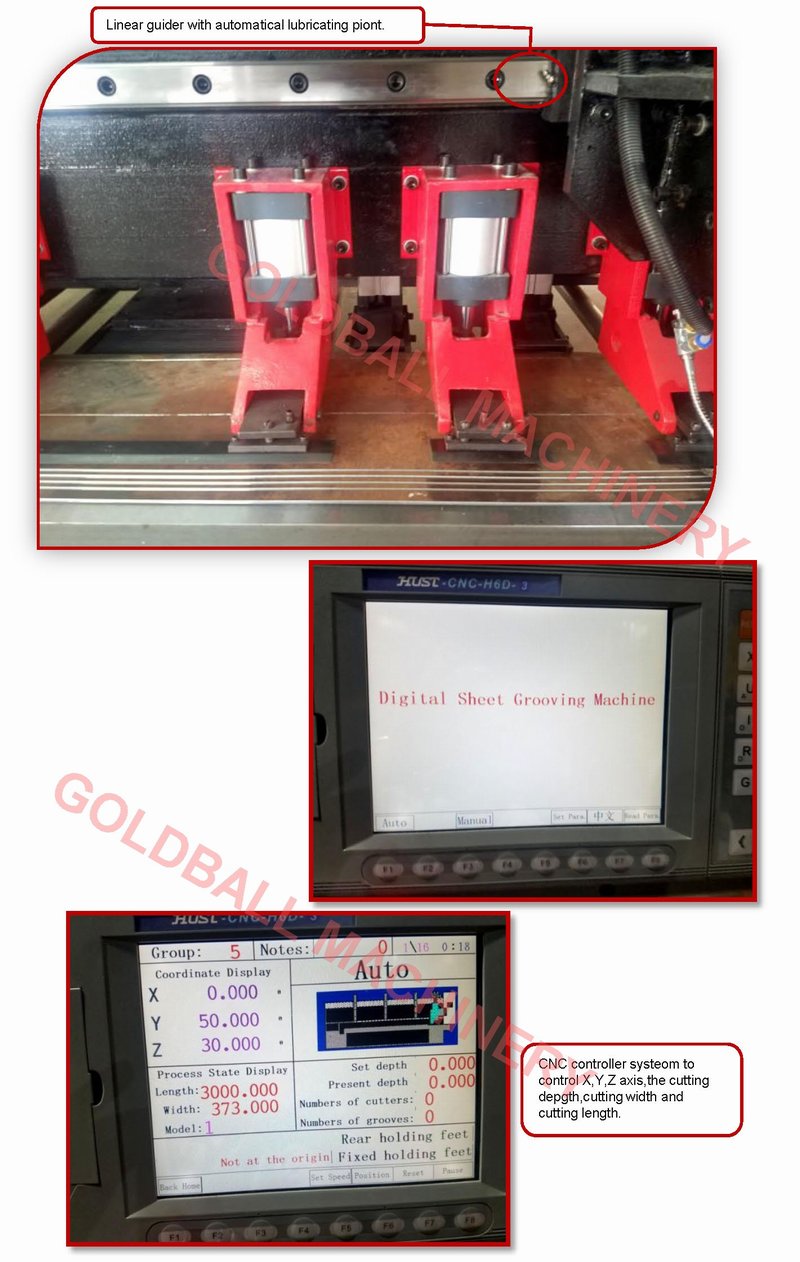

The machine consists of body frame,knife holder,plate clamping and feeding system.The horizontal movement and vertical movement of knife holder are controlled by controller,it decides grooving length and grooving depth.The plate clamping and feeding system is controlled by cnc controller also which decides the position where you want to do grooving on the plate.
The machine is total controlled by CNC controller and after programing,it can do the grooving and make slots on metal sheet plate automatically.

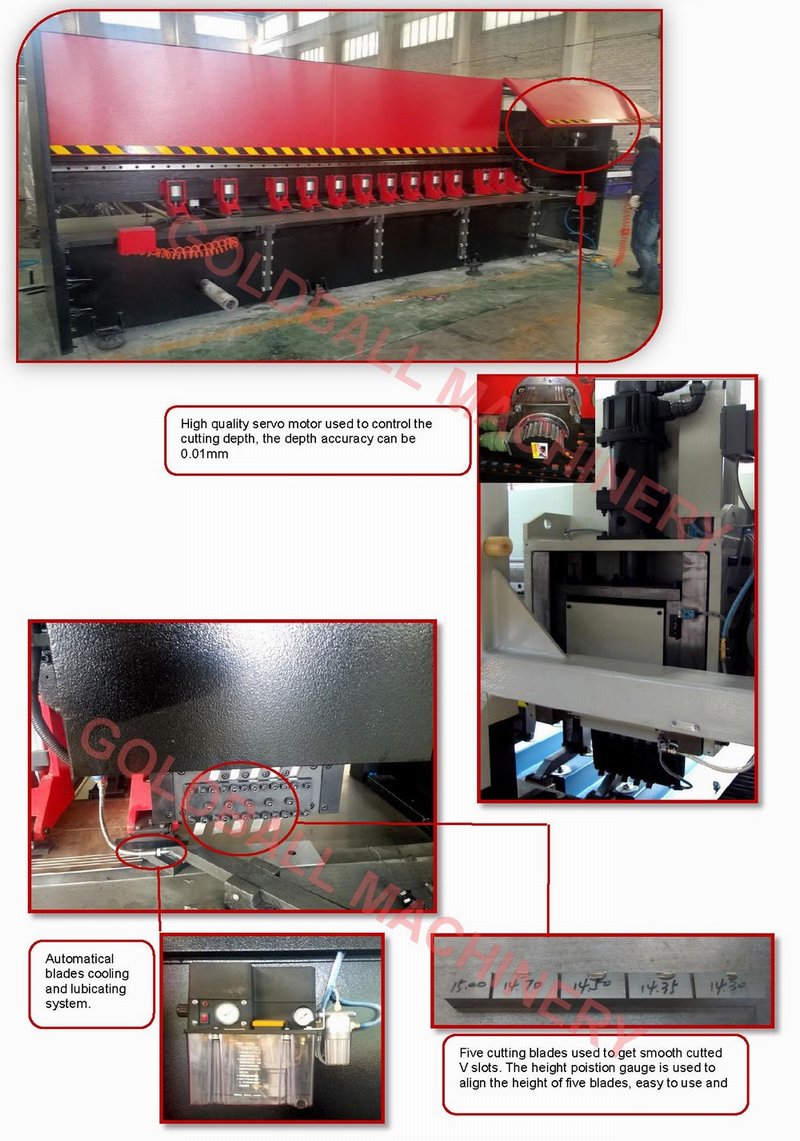

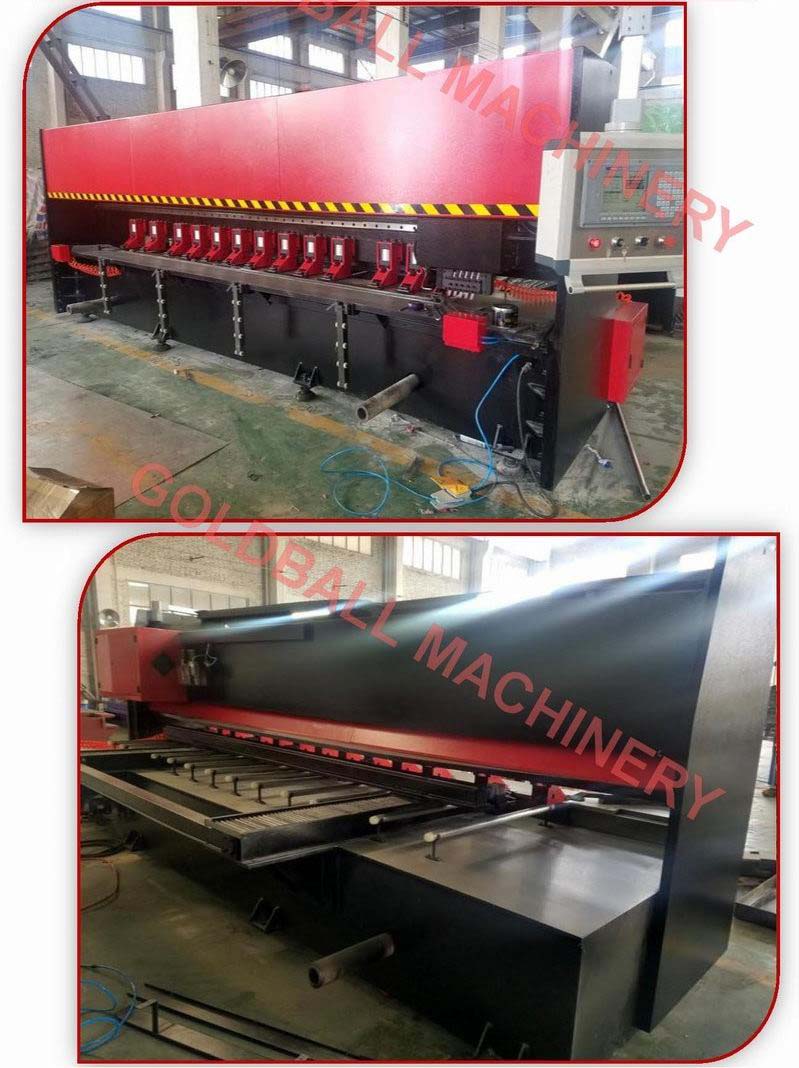

2.Reference pictures:
3.PARAMETERS OF CNC V GROOVING MACHINE/CNC V CUTTING MACHINE
|
ITEM |
CNC V GROOVING MACHINE/V CUTTING MACHINE:VKB SERIES |
||
|
MAX. WORKABLE WIDTH OF PLATE |
1250mm |
1250mm |
1250mm |
|
MAX. WORKABLE LENGTH OF PLATE |
4000mm |
5000mm |
6000mm |
|
MAX. WORKABLE THICKNESS OF PLATE |
0.40-4.00mm |
0.40-4.00mm |
0.40-4.00mm |
|
MIN.GAP BETWEEN SLOTS |
8mm |
8mm |
8mm |
|
X-AXIS WORKING SPEED |
70m/min |
70m/min |
70m/min |
|
X-AXIS RETURNING SPEED |
85m/min |
85m/min |
85m/min |
|
Y-AXIS MOVING SPEED |
20m/min |
20m/min |
20m/min |
|
Y.Z-AXIS REPEAT ACCURACY |
±0.01mm |
±0.01mm |
±0.01mm |
|
POWER OF X AXIS MOTOR |
4.5KW |
4.5KW |
4.5KW |
|
POWER OF Y.Z AXIS MOTOR |
1KW |
1KW |
1KW |
|
OVERALL SIZES (LxWxH) |
5740x2350x2110mm |
6740x2350x2110mm |
7740x2350x2110mm |
|
MACHINE WEIGHT |
10.5T |
12T |
18T |
4.PARTS LISTS OF CNC V GROOVING MACHINE/CNC V CUTTING MACHINE：
|
NO. |
PARTS |
BRAND |
|
1 |
CNC CONTROLLER |
TAIWAN HINSTUN |
|
2 |
PNEUMATIC CONTROL |
TAIWAN |
|
3 |
SERVO MOTOR |
TAIWAN,DELTA |
|
4 |
LIMIT SWITCH |
JAPAN,OMRON |
|
5 |
MAIN MOTOR |
TAIWAN,DELTA |
|
6 |
ELECTRIC PARTS |
FRANCE,SCHNEIDER |
|
7 |
KNIFE |
SOUTH KOREA |
|
8 |
LINEAR GUIDER AND BALL SCREW |
TAIWAN,HINWS |
|
9 |
CABLE |
GERMAN |
|
10 |
LUBRICATING SYSTEM |
BERCHI |
